BIN instruction on Mitsubishi PLC

BIN instruction on Mitsubishi PLC : BCD converted into binary.
The BCD (S) is converted into an equivalent binary number and stored at the destination (D). If the source data is not provided in a BCD format an error will occur. This instruction can be used to read in data directory from thumbwheel switches.

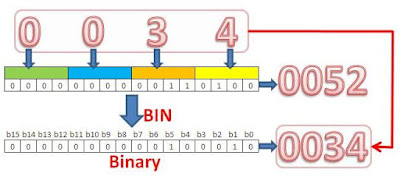

illustration of BIN instructions on Mitsubishi PLC :
BCD Convert to Binary
